Button, rivet, snap fastener in the apparel industry.
In the shoe and slipper industry, hook and eye fastening.
In the electrical electronics industry
It provides efficiency in the printing and cosmetic packaging industry.
Capsule button making
You can use it for Padova drills and knives.

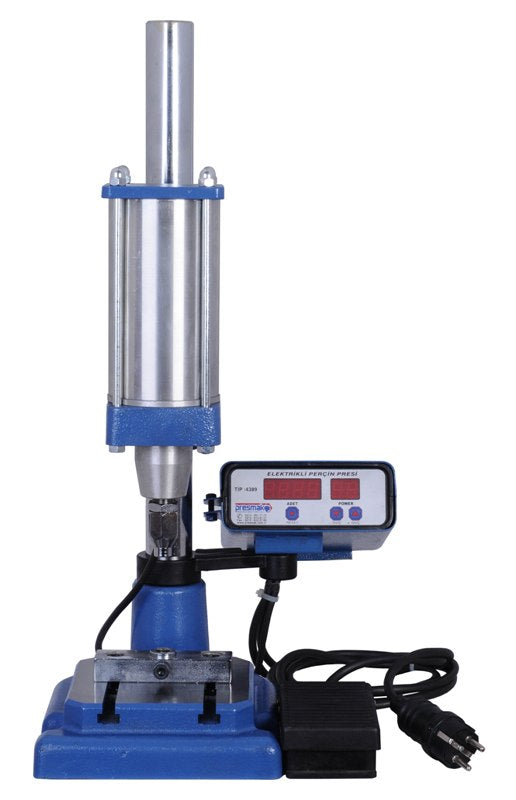

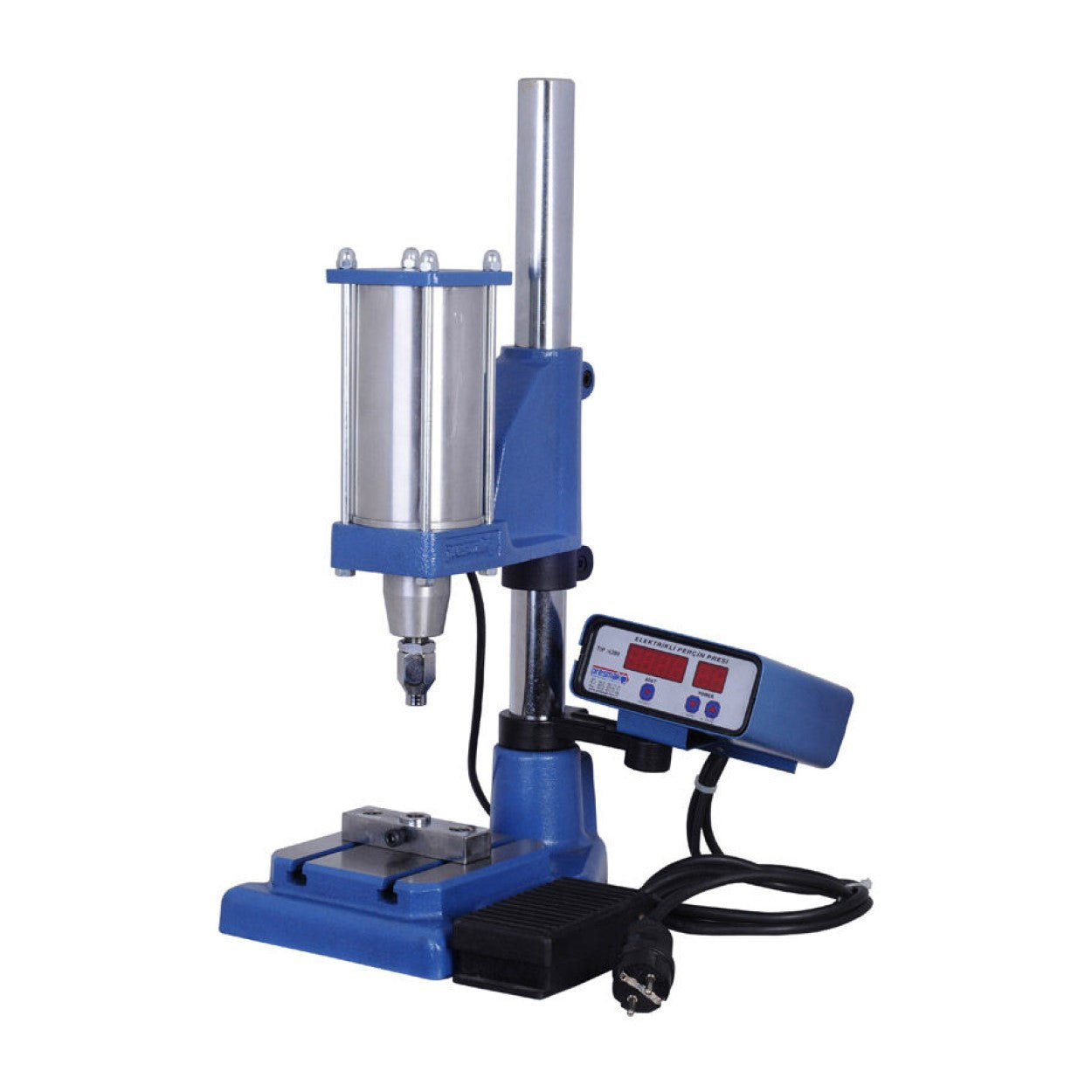

TECHNICAL SPECIFICATIONS
Impact Power : max. 1,700 kg / cm² (Digital adjustable.)
Column Diameter : Ø 42 mm
Collet Hole : Ø 9 mm
T Channels: 8 H 12 DIN 650
Dimensions : 640 x 380 x 170 mm
Capacity : 25 strokes per minute
Weight : 22 kg
You can use it comfortably by adjusting the impact force from 1 kg to 1700 kg/cm2 with the electric foot pedal.
Distance between bed axis and stage - 138 mm
Voltage: 220V It is recommended to use with voltage stabilizer or uninterruptible power supply.
Country of origin: Turkey Printing plates are not included in the press Print Level: It appeals to professional use. Ideal for high volume medium to large production.
